Evaluating safety footwear for high-risk industrial environments often focuses heavily on the protective toe cap. We tend to forget what lies directly beneath our feet. Job sites hide dangerous debris under thin layers of dirt or water. Bottom-of-foot puncture injuries still account for a significant percentage of workplace incidents today. These specific injuries often lead to severe medical complications.
You face strict compliance penalties when safety gear fails. A standard work boot simply cannot block exposed nails or broken glass. You need specialized underfoot protection to walk safely through these debris-heavy zones. Industrial environments demand highly reliable structural defenses.
This guide defines exactly what a steel midsole is and how it functions. You will discover how this component performs under strict regulatory testing. We explore how to evaluate this protection against modern composite alternatives. By the end, you will know exactly how to specify the correct footwear for your operational environment.

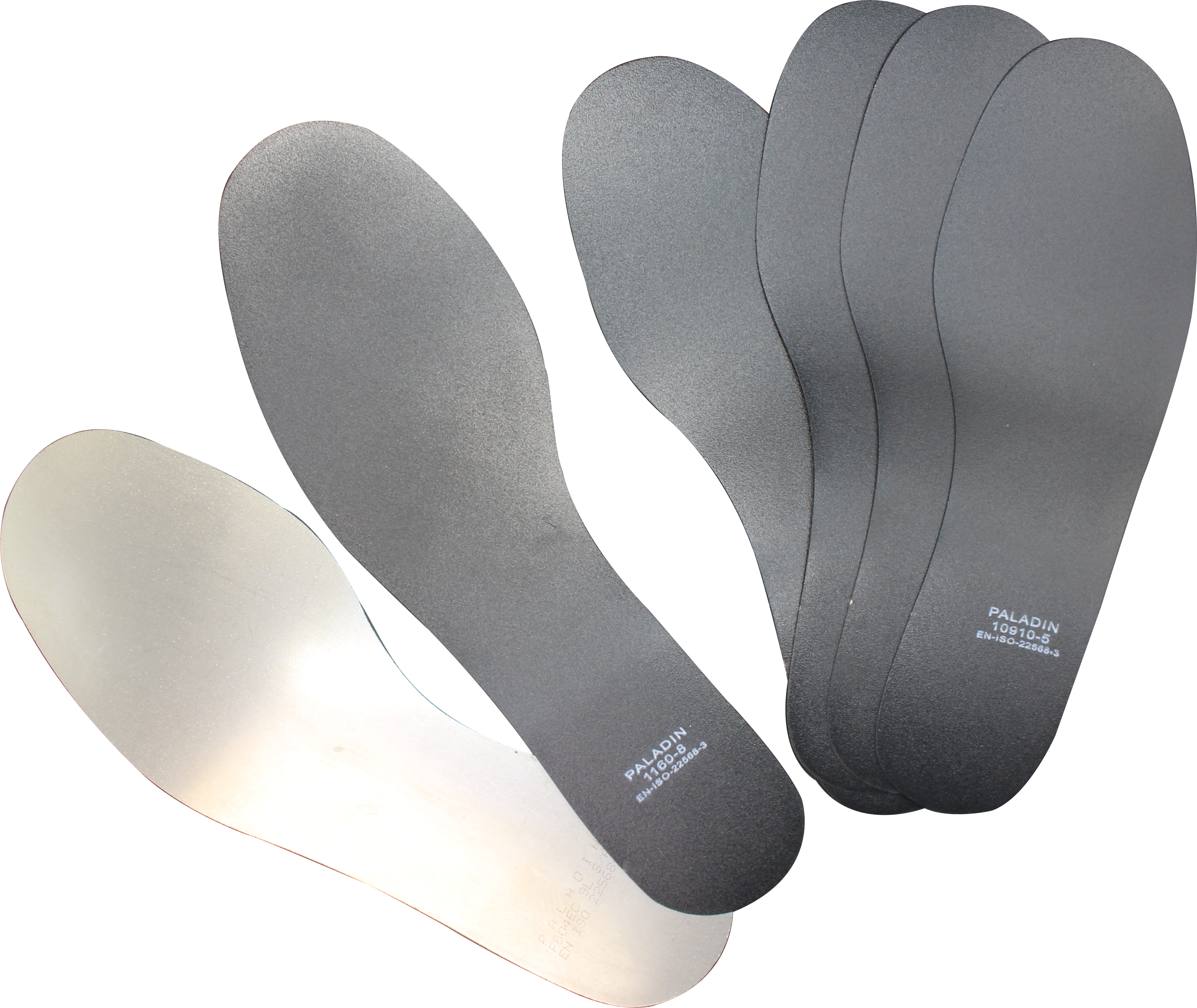

Understanding the exact anatomy of safety footwear is crucial for proper risk management. You must know how protective layers integrate into a boot. A Steel Midsole serves as a dedicated barrier against underfoot threats. Manufacturers place this component entirely beneath the wearer's foot. They typically cement or mold it securely between the anatomical footbed and the outer sole. This strategic placement ensures the metal stays locked in position during rigorous movement.
Material composition determines the overall effectiveness of this protective barrier. Factories produce these plates from austenitic or specially tempered stainless steel. This specific metal formulation creates a vital balance. It provides enough flexibility for natural walking motions while maintaining extreme rigid puncture resistance. Untempered metal would either snap under pressure or bend too easily.
You must understand the primary function of this component clearly. Engineers design it solely to stop vertical puncture threats. It blocks objects driving upward from the ground. It does not offer any metatarsal impact protection against falling objects. It also lacks electrical hazard safety capabilities due to its metallic nature.
We must also acknowledge the inherent coverage limitations of these plates. The physical shoe-making process prevents a rigid metal plate from being stitched into the upper material. The plate sits entirely flat inside the sole unit. It typically covers about 85 to 90 percent of the anatomical solebed. This design leaves a minor, necessary margin at the extreme outer edges to allow proper sole adhesion.
Common Mistake: Many buyers assume a steel plate extends 100 percent to the very edge of the boot. Shoe construction requires a tiny peripheral gap for molding the rubber outsole properly.
You cannot rely on simple visual inspections to verify underfoot safety. Safety footwear must pass rigorous, standardized laboratory tests. European and American standards dictate strict performance baselines for puncture resistance. These standardized tests ensure workers receive reliable protection across different boot models.
The European Standard, EN ISO 20345, governs footwear requirements across many global markets. You should look for specific alphanumeric safety ratings. Designations like S1P, S3, or SBP specifically indicate protective features. The letter "P" directly denotes Penetration Resistance. Under this standard, the midsole must withstand 1100 Newtons of direct force. Technicians apply this force using a precise 4.5mm diameter test nail. The nail must not pierce through the protective layer.
The US Standard, ASTM F2413, provides similar but distinct testing parameters. You can identify compliant footwear by the "PR" mark on the interior label. This designation confirms the boot passes American penetration testing. The sole must successfully withstand 1200 pounds of penetration force. Furthermore, the standard mandates severe flex testing. The metal must exhibit no structural cracking after 1.5 million mechanical flexes.
Procurement teams must enforce strict audit and verification processes. Do not rely entirely on basic marketing claims or brochure descriptions. Always request the official Declaration of Conformity (DoC). You should also demand independent laboratory test certificates. These documents objectively validate the 1100N or 1200lb performance threshold.
| Standard | Key Designation | Force Requirement | Additional Criteria |
|---|---|---|---|
| EN ISO 20345 | S1P, S3, SBP | 1100 Newtons | Tested using a 4.5mm diameter nail. |
| ASTM F2413 | PR Mark | 1200 Pounds | Must survive 1.5 million flexes without cracking. |
Best Practice: Keep standardized test certificates on file for every boot model issued to your workforce. This documentation protects your organization during safety audits.
Safety managers frequently debate between traditional metal plates and modern woven fabrics. An objective evaluation requires examining the distinct physical mechanics of each material. We must compare how they react to punctures, assess their ergonomic impact, and review their thermal properties. Different working environments demand different protective priorities.
We first examine the mechanics of puncture deflection versus catching. Steel proves highly effective at stopping very fine, sharp objects. It reliably blocks hypodermic needles or thin glass shards. The solid metal surface simply deflects the microscopic point upon impact. Conversely, composite materials like Kevlar or Aramid utilize woven fibers. These fabric layers catch and trap the intruding object. Extremely high force from a very fine point can occasionally separate these fibers.
Weight and overall ergonomics play a massive role in daily worker comfort. Steel components are noticeably heavier and physically stiffer. This rigidity can increase worker fatigue during long operational shifts. Jobs requiring excessive walking or repetitive crouching amplify this fatigue. Composite alternatives are significantly lighter and highly flexible. They conform much better to the natural gait of the human foot.
Thermal and conductive properties drastically separate these two materials. Solid metal conducts extreme cold and external heat directly into the boot interior. It also reliably triggers security metal detectors. This poses a major operational risk for security-controlled environments like airports or secure logistics warehouses. Composite materials remain highly thermally insulating. They are also 100 percent metal-free, ensuring smooth passage through security checkpoints.
Finally, we evaluate cost efficiency. Metal manufacturing processes are highly standardized and mature. Steel is generally less expensive to manufacture than advanced Aramid fabrics. This offers a highly reliable, budget-friendly option for mass fleet procurement. When purchasing hundreds of pairs, this cost difference becomes a substantial factor.
| Evaluation Dimension | Steel Performance | Composite Performance |
|---|---|---|
| Puncture Mechanic | Deflects fine points completely. | Catches and traps objects via fibers. |
| Weight & Flexibility | Heavier, rigid, stiffer walk. | Lighter, flexes naturally. |
| Thermal Profile | Conducts heat and cold. | Thermally insulating barrier. |
| Security Screening | Triggers metal detectors easily. | 100% metal-free, scanner safe. |
Deploying the right footwear requires a rigorous assessment of your specific environment. You cannot issue a universal boot for every conceivable industrial job. Certain hazards strictly mandate the rigid deflection capabilities of a solid metal plate. We must map the protective materials directly to the operational risks observed on site.
Demolition and heavy construction sites represent the highest tier of underfoot risk. Workers constantly navigate environments littered with exposed rebar. They step on heavy-gauge nails driven through thick timber. Jagged metal offcuts cover the temporary walkways. Maximum blunt-force and penetration resistance is completely non-negotiable here. A solid metal plate guarantees the nail will bend rather than pierce the sole.
Waste management and recycling facilities present incredibly unpredictable floor hazards. Personnel face a high daily risk of encountering shattered glass bottles. They routinely step on discarded hypodermic needles or sharp, unidentifiable debris hidden in trash piles. The solid deflection mechanic of steel proves vastly superior in these unpredictable scenarios. Needles struggle to separate a solid piece of tempered metal.
Heavy manufacturing plants and active scrap yards share similar risk profiles. These workplaces accumulate heavy metal turnings on the concrete floor. Machining processes produce razor-sharp swarf. Walking over this rigid, jagged metal daily degrades inferior sole materials quickly. Metal-plated soles provide the necessary durability to survive these harsh abrasive conditions long-term.
However, you must know exactly when to avoid issuing metallic soles. Certain operational environments strictly forbid conductive or heavy footwear.
Introducing new safety footwear to a workforce often generates unexpected friction. You must anticipate common implementation risks before executing a massive purchase order. Proper planning minimizes user complaints and ensures seamless safety compliance. We outline the core logistical steps to roll out rigid-sole boots effectively.
Worker adoption risks present the most immediate challenge. If you transition a workforce from standard non-protective boots to stiff-soled boots, anticipate resistance. Employees often submit complaints regarding excessive stiffness and increased weight. You can proactively mitigate this friction. Invest in boot models featuring high-quality, shock-absorbing PU or EVA outsoles. Enhanced cushioning helps offset the rigid nature of the internal plate.
Corrosion considerations remain a critical, often overlooked long-term safety factor. You must ensure the manufacturer specifies rust-resistant or specially coated steel plates. Heavy industrial use eventually causes micro-cracks in the boot's outer rubber sole. These tiny fissures let standing water seep inside the sole unit. Cheap, untreated metal plates will quickly rust over time. Corrosion rapidly degrades the structural integrity and compromises worker safety.
You need a logical, structured approach to shortlisting footwear candidates. Follow these specific steps to guarantee optimal procurement results:
Best Practice: Always schedule wear-trials during the most physically demanding shifts to capture realistic fatigue data.
Understanding the exact mechanics of a steel midsole remains the first vital step in footwear selection. You must align your safety procurement directly with the actual hazards present on your site floors. Proper alignment prevents both catastrophic workplace injuries and wasteful over-specification.
Modern composite materials certainly offer undeniable ergonomic and thermal benefits. However, the traditional metal plate remains the undefeated, cost-effective standard for absolute underfoot protection. It excels uniquely against high-risk, fine-point puncture hazards like glass and needles.
Take immediate action by auditing your current facility floors for sharp debris. Match your next footwear specifications to the strict EN ISO or ASTM standards discussed above. Running a targeted wear-trial will ultimately guarantee worker comfort while ensuring complete legal compliance across your operations.
A: No. Steel midsoles are permanently built into the structural layers of the sole during manufacturing. Attempting to remove one will destroy the boot and void all safety certifications.
A: Yes, inherent to its material, a steel plate is more rigid than woven composite alternatives. This means a stiffer walk, which is a necessary trade-off in environments where severe puncture risks exist.
A: A steel shank is a narrow strip placed only under the arch of the foot to provide structural support and prevent the boot from bending incorrectly. A steel midsole is a wide plate covering the entire sole specifically designed to stop punctures.
A: No. Steel conducts electricity. If your workforce requires Electrical Hazard (EH) or Dielectric protection, you must specify non-metallic, composite midsoles paired with appropriate insulating outsoles.
