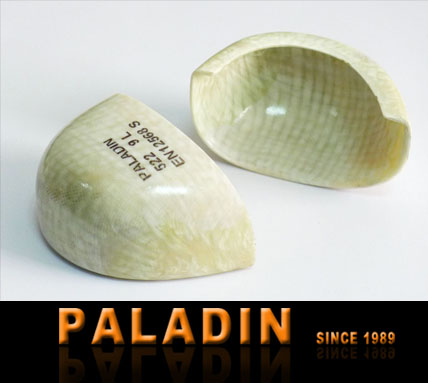

Crafted from an advanced, highly durable fiberglass and composite resin matrix, this protective toe cap redefines the standard for modern workplace safety. The meticulously engineered structure offers an exceptional strength-to-weight ratio, providing a robust shield against heavy impacts and immense compression forces without adding unnecessary bulk to the shoe. Unlike traditional metallic alternatives, the sophisticated fiberglass material feels remarkably light, allowing for an agile and unrestrictive walking experience that drastically reduces foot fatigue during extended shifts. The surface craftsmanship is impeccably smooth, ensuring seamless bonding with various upper materials during the shoe manufacturing process. Beyond its physical strength, the inherent properties of the composite resin make it highly impervious to corrosive chemicals, acidic substances, and extreme temperature fluctuations. Whether navigating a freezing outdoor construction site or a humid, chemically intensive manufacturing plant, this protective cap maintains its structural integrity and reliable performance. By integrating this advanced component into your safety footwear lines, you deliver a superior, reliable, and highly comfortable protective solution that modern industrial professionals demand and implicitly trust.
| Product Name | Fiberglass Toe Cap |
|---|---|
| Model | 604 |
| Brand | PALADIN |
| Code | 640690 |
| Material | Fiberglass / Composite Resin |
| Impact Resistance | 200 Joules |
| Compression Resistance | 15 KN |
| Standard | EN 12568 / EN ISO 22568 / CSA / ASTM |
| Weight Characteristics | 30%-50% lighter than standard steel toe caps, approx. 75g-130g/pair |
| Core Features | Lightweight, Non-metallic, Corrosion resistant, Chemical resistant, Extreme temperature resistant |
| Application | Construction, manufacturing, and heavy-duty safety shoes |
Upgrading your safety footwear portfolio requires components that actively improve the wearer's daily experience. This fiberglass toe cap is meticulously designed to solve the common issues of heavy, uncomfortable work boots by offering a streamlined, protective, and highly functional alternative. It empowers shoe manufacturers to produce premium footwear that professionals actually want to wear.
Exceptional Strength-to-Weight Ratio: Delivers maximum defensive capabilities while keeping the overall shoe profile incredibly light, facilitating natural foot movement.
Thermal and Electrical Insulation: Naturally resists temperature transfer, keeping feet warmer in winter and cooler in summer, while providing a non-conductive barrier for electrical hazard environments.
Seamless Integration: The precision-molded contours allow for flawless stitching and lasting adhesion within the shoe's toe box, ensuring a sleek, professional appearance without bulky protrusions.
Unyielding Environmental Resistance: Formulated to repel water, oils, and harsh industrial solvents, preventing material degradation over years of rigorous use.
Enhanced Spatial Comfort: The thin-wall design maximizes internal toe room, preventing blistering and friction, which dramatically elevates the wearer's comfort during prolonged shifts.
Ensuring absolute compliance with global safety regulations is paramount for any protective equipment provider. This component undergoes rigorous testing to meet and exceed the most demanding international standards, eliminating compliance concerns for international procurement and ensuring absolute peace of mind.
Withstands up to 200 Joules of sudden, heavy impact forces.
Endures 15 KN of static compression without structural failure.
Fully certified under EN 12568, EN ISO 22568, CSA, and ASTM protocols.
Provides top-tier foot protection that rivals and often surpasses traditional steel caps.
Heavy footwear is a leading cause of musculoskeletal strain in industrial workers. By transitioning to this advanced composite material, the physical burden on the wearer is drastically minimized, directly enhancing daily productivity, focus, and overall occupational health.
Achieves a remarkable 30% to 50% weight reduction compared to standard steel caps.
Maintains an ultra-light profile, weighing merely 75g to 130g per pair depending on the size.
Significantly diminishes lower limb fatigue during intense, all-day operations.
Transforms heavy-duty work boots into agile, comfortable performance footwear.
Modern industrial environments often require strict security and hazard controls. This completely non-metallic construction provides an invisible shield that seamlessly passes through security checkpoints while offering vital elemental and electrical protection.
100% metal-free composition guarantees a silent, non-magnetic footprint.
Airport-friendly design prevents triggering metal detectors in high-security zones.
Ideal for security personnel, electronic manufacturing, and mining sectors.
Superior thermal and dielectric properties block extreme heat, cold, and dangerous electrical currents.
Exposure to harsh substances quickly deteriorates inferior materials. Engineered with a premium thermosetting resin matrix, this toe cap acts as an impenetrable barrier against the most aggressive industrial environments, ensuring a prolonged product lifecycle.
Highly resistant to acidic, alkaline, and abrasive chemical spills.
Repels heavy oils, synthetic lubricants, and corrosive industrial solvents.
Maintains absolute structural stability in severely damp, humid, and extreme temperature conditions.
Completely immune to rust and oxidation, a major advantage over traditional metal caps.
A critical flaw in metal toe caps is permanent deformation after an impact, which can trap or permanently injure the toes. This fiberglass variant features intelligent structural memory, combined with a space-saving profile that revolutionizes footwear design.
Boasts an impressive deformation recovery rate of up to 85% after a heavy impact.
Prevents permanent denting, ensuring the wearer's toes are never crushed or trapped.
Engineered with thinner walls compared to standard plastic caps, yielding a much more spacious toe box.
Enables footwear designers to create sleeker, more aesthetically pleasing shoe silhouettes without sacrificing safety.
Aligning with the global shift towards environmentally responsible manufacturing, this product supports the creation of greener safety footwear. It helps brands meet strict environmental, social, and governance (ESG) criteria while maintaining peak industrial performance.
Manufactured using non-toxic, environmentally safe composite materials.
Features recyclable properties to actively reduce industrial manufacturing waste.
Supports sustainable production cycles within the global footwear industry.
Significantly lowers the overall carbon footprint compared to energy-intensive metal smelting processes.
Selecting the right manufacturing partner is critical to securing your supply chain and maintaining the highest quality standards for your footwear brand. As Jiangsu Paladin Industrial Co., Ltd., our advanced production facilities are dedicated to pioneering safety shoe components that drive the industry forward. We combine cutting-edge material science with stringent quality control to deliver components you can implicitly trust.
Uncompromising Quality Assurance: Every batch undergoes strict laboratory testing to guarantee zero defects and consistent performance across all sizes.
Advanced Manufacturing Technology: Utilizing state-of-the-art molding and resin injection systems to ensure precise dimensions and flawless finishes.
Global Supply Capabilities: A robust production capacity designed to meet large-scale procurement demands with reliable, on-time delivery schedules.
Dedicated Technical Support: Our experienced engineering team offers comprehensive guidance on material integration and footwear design optimization.
Direct Communication Channels: Reach out directly to our technical sales team via info@pldshoes.com or call +86-135-117-47017 for immediate assistance and customized solutions.
Navigating the technical specifications of safety footwear components can be complex. Below, we have compiled detailed answers to the most common technical and operational inquiries to assist your procurement and engineering teams in making informed, confident decisions.
Q1: How does the impact resistance of this fiberglass toe cap compare to traditional steel caps?
Both materials are meticulously engineered to meet the strict 200 Joules impact requirement under EN 12568 and ASTM standards. However, fiberglass offers the distinct added advantage of elastic memory, meaning it rebounds after an impact rather than permanently denting and trapping the toes, which is a common risk with steel.
Q2: Can this composite material withstand exposure to industrial solvents and oils?
Absolutely. The thermosetting composite resin matrix is specifically formulated to resist degradation from a wide range of harsh chemicals, including industrial lubricants, acids, and alkalis. This ensures long-lasting structural integrity even in the most severe heavy-industry environments.
Q3: Is this product suitable for footwear used in high-security or electronic manufacturing zones?
Yes, it is 100% metal-free. This non-magnetic property makes it completely airport-friendly and ideal for environments requiring frequent passage through metal detectors, as well as facilities that are highly sensitive to magnetic interference.
Q4: Will the use of fiberglass toe caps alter the internal sizing of our safety shoes?
Actually, it optimizes internal space. Due to its superior strength-to-weight ratio, we can mold thinner walls compared to standard plastic or composite caps. This provides a more spacious and comfortable toe box without enlarging the external shoe profile, enhancing the wearer's comfort.
Q5: What are the storage and environmental recommendations to maintain the quality of these toe caps before assembly?
We recommend storing the toe caps in a dry, well-ventilated warehouse away from direct, prolonged UV exposure. Thanks to their inherent resistance to extreme temperatures and moisture, they possess an exceptionally long shelf life and will not rust, warp, or degrade during standard industrial storage.
